In the realm of professional audio engineering, the monitoring section of an audio console is a cornerstone in achieving sonic excellence. If you are new to consoles, check out this article first (Insert here). Now, focusing on the monitoring section, this intricate system is pivotal in ensuring accurate sound reproduction and critical decision-making. It consists of various components, including the control room, headphones, and master outputs. Each element serves a unique purpose and caters to specific monitoring requirements. In this article, we will not only delve into the technical aspects but also unravel the magic behind these monitoring sections. So, buckle up for a fascinating journey through the world of sound!

Control Room Monitoring

The control room monitoring section is where we, as audio engineers, spend most of our time. This section comprises the monitor control knob as well as several selector buttons for different monitors. Designed with high-functionality, full-bandwidth op-amps, it is optimized for critical listening, allowing professionals to analyze the nuances and intricacies of audio material with precision. A flat frequency response is maintained here, which is crucial to ensure that no frequencies are artificially boosted or attenuated, thereby altering the perception of sound.

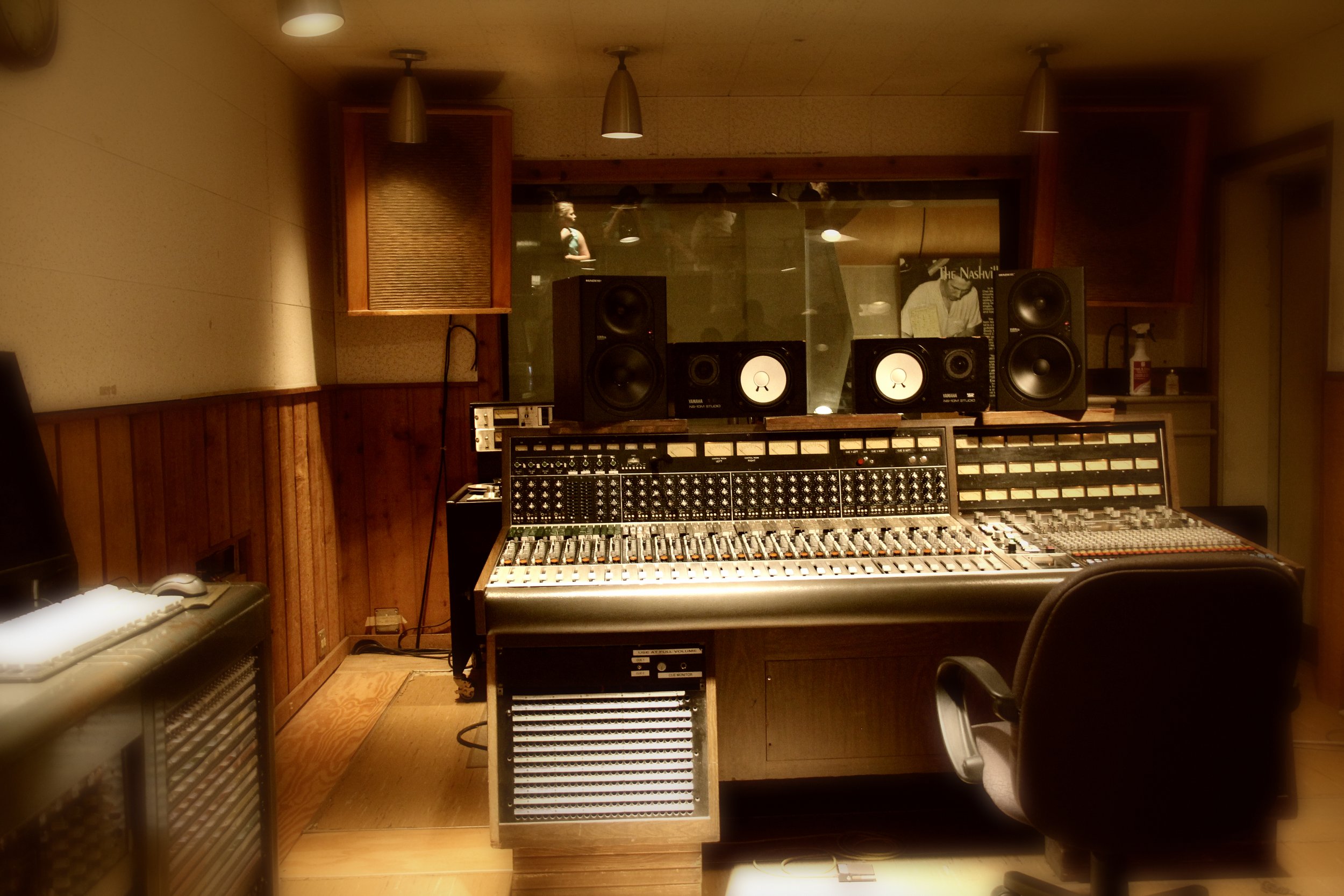

While the console may have electronics that ensure a flat frequency response, the monitoring section is intimately tied to the design of the mix room itself. If the mix room is untreated (and by "treated," I mean the addition of acoustical baffles, diffusers, and foam), elements such as bass frequencies could be artificially boosted in the control room. Consequently, the final mix would lack bass when played elsewhere. Therefore, an accurately calibrated control room is essential for making informed decisions regarding mixing, editing, and mastering.

The control room monitoring section is directly linked to the monitor outputs, which usually connect to your main speakers. However, some consoles have multiple connections for different speakers. For example, there might be an A/B switch that toggles the audio between two sets of speakers. Often, the A monitors are large, full-range speakers, while the B monitors are smaller, resembling home theater speakers. It's important to listen on both types of speakers to ensure that your mix is compatible. If the mix sounds excellent on your high-end speakers, it could be lacking when played through your B set of speakers, which might be more typical of home theater systems. Therefore, if the majority of your audience has speakers similar to your B set, a mix not optimized for these smaller speakers could disappoint a significant portion of your consumers. Like any mix, it's important to check your music on multiple speakers and listening formats. This is why the control room section of your console is so critical.

Some consoles have buttons labeled for you to listen to your mix at multiple points on the console. For example, you could be able to click a button to listen to your mix coming in on the microphone inputs, or before the ox sends, or before the EQ or after the EQ. A good control room section on a console will help the audio engineer make informed decisions when changing the mix or applying effects.

Talkback System

Talkback microphones can vary in size and shape. Some are even built into the console.

A critical yet often overlooked component of an audio console is the talkback system. This system is indispensable in the context of studio recording and live performances, where communication between the audio engineer and musicians or performers is essential. Let’s break down the elements of a talkback system and understand how it operates.

Components and Functionality

Talkback Microphone: This is the main component of the talkback system. It is usually a small, omnidirectional microphone that is built into the console or externally connected. It captures the audio engineer's voice when communicating with artists in the recording booth or on stage. Some consoles allow you to connect an external microphone if you require higher audio quality or a more convenient placement.
Talkback Activation Button: This button, when pressed, activates the talkback microphone. Most talkback systems have a momentary switch which means that the microphone is only active when the button is pressed and held down. This prevents unwanted sounds from being accidentally sent through the talkback system when it is not intentionally being used.
Routing Options: The audio from the talkback microphone can be routed to various destinations. In a recording studio, it's commonly sent to the headphones of the musicians in the isolation booth so that the engineer can communicate with them. In a live setting, it might be routed to the in-ear monitors of performers on stage.
Dim Knob: The 'Dim' knob or button is an essential feature found in many talkback systems. When the talkback system is engaged, the Dim knob lowers the volume of the control room monitors. This ensures that there's no feedback or echo when the talkback microphone is active, and also helps the engineer to clearly hear the communication without the mix playing loudly in the background. The Dim knob is usually adjustable, allowing the engineer to set how much the control room monitors' volume is reduced when using the talkback system.

Using the Talkback System:

In a typical recording session, musicians are isolated in a recording booth to prevent sounds from leaking into other microphones. This isolation also means that they can’t communicate with the control room by just speaking. Here is where the talkback system comes into play.

When the audio engineer needs to give instructions or feedback to the musicians, they will press the talkback button, which activates the talkback microphone. They can then communicate directly with the musicians through their headphones. The Dim knob automatically reduces the volume of the control room monitors to avoid any feedback or distractions. Once the communication is complete, releasing the talkback button deactivates the microphone, ensuring no unintended audio is sent.

Similarly, in live performances, a talkback system can be utilized to communicate with performers on stage. For instance, the audio engineer may need to instruct a performer to adjust their position relative to a microphone, or to give cues.

Headphone Monitoring

The headphone monitoring section in an audio console allows engineers to route audio signals directly to their headphones. This section includes dedicated headphone outputs with individual volume controls. At this juncture, "impedance matching" is crucial, ensuring that the headphones and the output possess compatible electrical characteristics, which is essential for optimal sound quality. Additionally, some consoles incorporate a feature called crossfeed, which simulates the natural stereo image of speakers in a room.

Headphone monitoring is an alternative or supplementary monitoring option compared to control room monitoring. It offers a more intimate and isolated listening experience. This is particularly useful when the control room is unavailable, or when the engineer requires privacy for focused listening. As I mentioned earlier, it is essential to listen to your mix through multiple formats, and headphones are no exception. Many consumers listen to music through headphones; thus, it is important to check your mix using them. Moreover, headphones provide a distinctly different critical listening environment compared to speakers. Some details may be more prominent in headphones due to the absence of interaction between speakers and control room acoustics.

Popular among audio professionals are the Sennheiser HD 650 and Beyerdynamic DT 990 Pro headphones, which are renowned for their comfort and accurate sound reproduction.

Main Outputs

This is where the polished, sparkling audio is sent out to the world through external devices such as recorders, live sound systems, or broadcast feeds. In most consoles, the main outputs or main stereo bus, are fed directly to other devices. In lower level consoles, the main outputs might go to your monitors but this is not recommended. You should be utilizing your monitor outputs through your speakers and not the main outputs.

The main outputs are optimized to feed other pieces of equipment and provide the most pristine signal path. Also, adjustable levels let engineers control the signal strength sent to external devices. This section may include metering to provide visual feedback on audio levels to prevent “clipping” or distortion - essentially, ensuring the audio doesn’t get too loud and distort.

Conclusion

the monitoring section of an audio console is the epicenter of audio perception and decision-making. Functioning as a sonic nerve center, it facilitates audio professionals in navigating the vast acoustic landscape, translating and decoding sounds into the form we perceive.

From the acoustically refined space of the control room to the personal realm of headphone monitoring, and ultimately to the commanding dispatch via the master outputs, each part of this section plays an indispensable role in shaping the auditory experience. These elements together form a powerful tool that can turn raw sound into immersive, emotional experiences.

With the knowledge of how these components interact, it's now your turn to harness their power. Remember that each room, each pair of headphones, and each output device tells a different acoustic story. By understanding and working with these differences, you can create mixes that not only sound good in the studio, but also resonate with listeners across a variety of environments.

Whether you are a budding audio engineer or a seasoned professional, the magic of sound is in your hands. Embrace it, and channel your creativity to shape sonic experiences that push the boundaries of auditory excellence.
